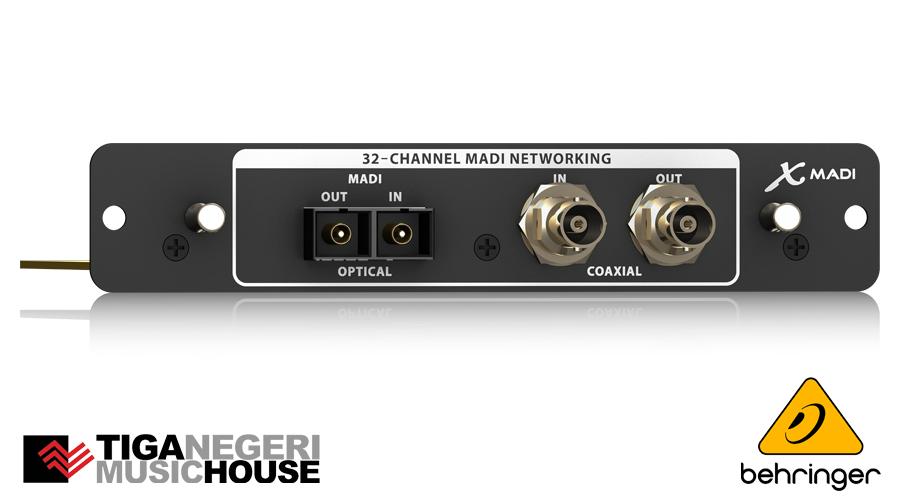

Behringer X-MADI 32-Channel MADI Expansion Card for X32 Console

X-MADI
High-Performance 32-Channel MADI Expansion Card for X32

The X32 ’s expansion slot provides flexible and expandable connectivity for many different applications. The X-MADI Expansion Card can easily be installed in place of the X-USB card that is included with the X32 . The 32-channel interface brings even more I/O options to the X32 by instantly enabling it for MADI networking. The MADI or AES10 protocol is quickly becoming an industry standard in many broadcast applications.

32-channel, bi-directional audio interface via MADI (AES10)
Optical duplex SC-plugs (IEC874-19) to connect with fibre optic MADI devices
Multimode fibre optic cable length of up to 2 km supported
Dual BNC terminals for transmission via standard 75-Ohm coaxial cable of up to 100 m length
BNC connectivity can be used as a redundancy network with fibre optic installations
Console allows selecting a block of 32 out of up to 64 MADI channels
Both MADI formats 56-channel (AES10-1991) and 64-channel (AES10-2003) supported
1-Year Warranty Program*
Designed and engineered in Germany
